Powders are deceptively difficult to handle. They bridge, clog, cake and cling to surfaces, quietly eroding throughput and dosing accuracy across entire production lines. The ultrasonic vibrator tackles these problems at their root, using vibration measured in microns rather than millimetres. Here is how the technology works, why it outperforms conventional methods, and how to apply it across real industrial processes.
What an ultrasonic vibrator actually does

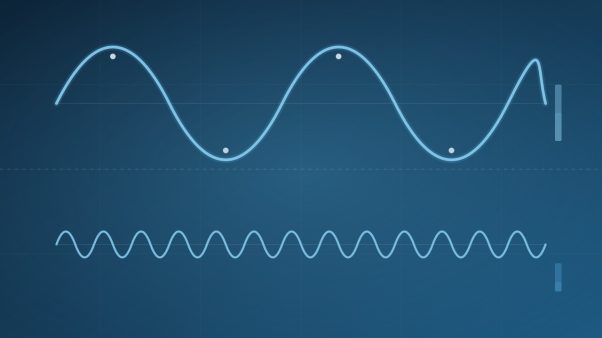

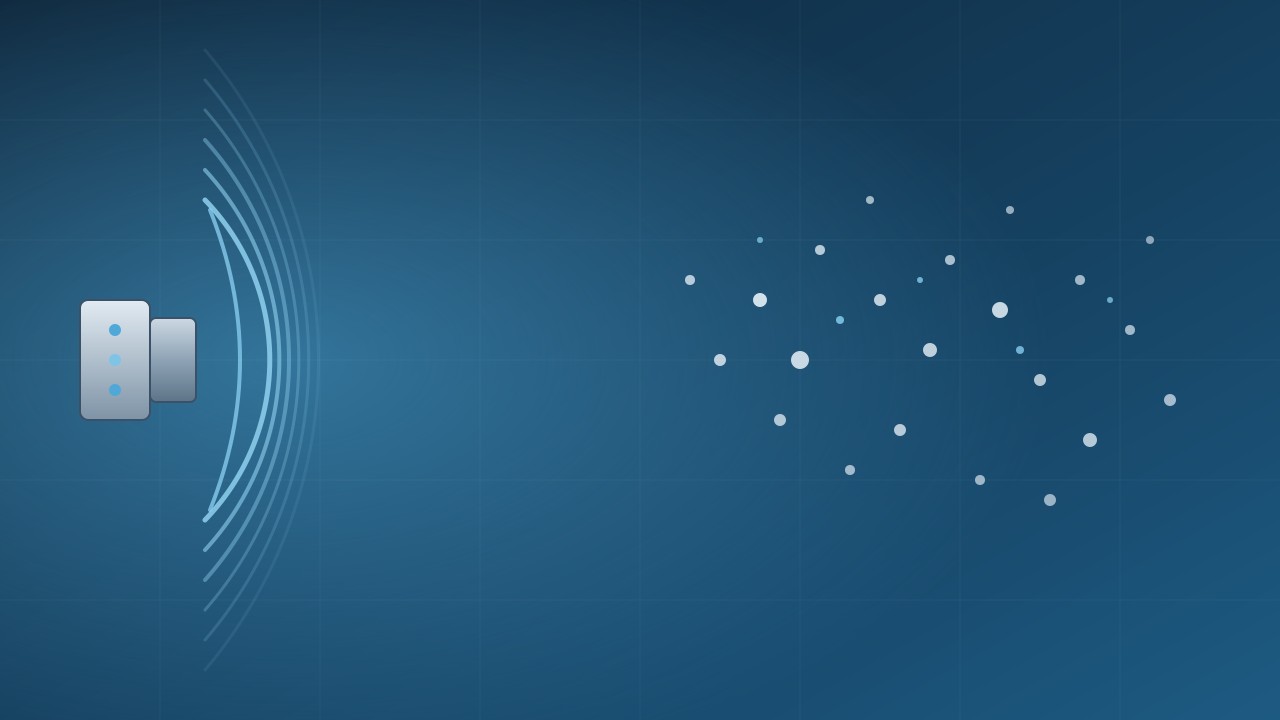

At its core, an ultrasonic vibrator uses high-frequency ultrasonic waves to set a surface vibrating at tens of thousands of cycles per second, with an amplitude of only a few microns. That combination is the whole point: the movement is far too fast and too small for the human eye to see, yet it delivers tens of thousands of micro-impacts every second to whatever powder sits against the surface. Those impacts work directly against the adhesion forces that bind fine particles to walls, screens and to one another, keeping the material mobile where it would otherwise stick. The frequencies involved sit above the range of human hearing, which is part of what makes the technology so unobtrusive on the factory floor: the energy goes into the powder, not into audible noise or visible shaking. What the operator sees is simply a surface that no longer clogs, with the mechanism that achieves it operating entirely at a scale invisible to the eye. This is also why the approach is so gentle on the product itself: there is no violent agitation to fracture fragile granules or generate unwanted fines, only a rapid, low-amplitude excitation that persuades particles to release their grip on one another and on the surface.
The effect is best understood as a change in the behaviour of the powder rather than a brute-force shaking. By exciting the surface ultrasonically, the device effectively lowers the friction coefficient between individual particles and between the powder and its container. Particles that would normally interlock and form stubborn agglomerates are kept loose and free-flowing. In practical terms, the vibrating surface behaves as if it were far larger and far slicker than it physically is, so material slides, sieves and discharges instead of bridging or caking. Local clumping, the silent enemy of consistent flow, is broken up before it can take hold. This distinction matters because powder problems are rarely about a lack of force; they are about adhesion and cohesion at the scale of individual grains. A heavier mechanical shake can momentarily dislodge a bridge, but it does nothing to change the underlying tendency of fine particles to stick. Ultrasonic excitation, by contrast, addresses that tendency directly and continuously, which is why it succeeds with cohesive, fine or hygroscopic powders that defeat conventional vibration entirely.
Crucially, this is achieved with no large moving parts. Conventional vibratory equipment relies on motors, eccentric weights or pneumatic knockers that physically shake an entire assembly, with all the wear, noise and energy cost that implies. An ultrasonic system instead drives a compact transducer that excites only the working surface, which means the hardware stays small and can be retrofitted onto existing hoppers, chutes, screens and dosing outlets with minimal disruption. The same micron-scale vibration that fluidises a powder also dislodges the thin residual layer that tends to accumulate on equipment walls, so the technology serves two purposes at once: it keeps material flowing and it keeps surfaces clean. That dual role has a further consequence for hygiene-sensitive lines: a surface that retains less powder is faster to clean between batches and less prone to cross-contamination, since there is simply less residue left behind to remove. In sectors where changeover time and contamination control are scrutinised closely, this quiet secondary benefit can matter as much as the flow improvement that justified the installation in the first place.
Why the ultrasonic vibrator outperforms conventional methods
The advantages of an ultrasonic vibrator become clear the moment you compare it with the mechanical alternatives that most plants have relied on for decades. The headline benefit is reliable flow: because the vibration continuously counteracts particle adhesion, powders discharge smoothly and predictably, blockages and bridging are largely eliminated, and the residue left clinging to equipment is sharply reduced. Less retained material means less waste, fewer interruptions to clear a jam, and lower production costs over the life of the line. For operations that handle expensive or hard-to-source powders, recovering material that would otherwise be lost on the walls is a benefit that pays for itself. The contrast with mechanical methods is not only about performance but about predictability: a vibrating motor or a pneumatic knocker delivers a coarse, intermittent jolt that may or may not clear a given blockage, whereas ultrasonic excitation acts steadily and uniformly across the working surface. Flow becomes something the process can rely on rather than something operators must constantly nurse.
|
Conventional vibration or manual methods |
Ultrasonic vibrator |
|
Bridging, clogging and caking interrupt flow |
Continuous, predictable flow with minimal blockage |
|
Significant powder retained on walls and screens |
Reduced retention, less waste and easier cleaning |
|
Approximate dosing, frequent errors |
Fine vibration control enables precise dosing |
|
Bulky equipment, large moving parts to maintain |
Compact unit, no large moving parts, low maintenance |
|
High energy use and considerable noise |
Low energy consumption, very quiet operation |
|
Disruptive to retrofit |
Easy to integrate into existing systems |
Precision is the second decisive advantage. Because the amplitude and timing of an ultrasonic vibration can be controlled finely, the technology lends itself to accurate metering of powder, where even small dosing errors translate into quality problems or wasted material downstream. A flow that starts and stops cleanly, without the surging or dribbling typical of mechanical feeders, makes it far easier to hit a target weight or volume consistently. In regulated sectors, that repeatability is not merely a convenience; it is a prerequisite for meeting specification and documenting compliance batch after batch. The same controllability also helps at the small-quantity end of the scale, where dosing a few grams accurately is notoriously harder than handling bulk: a feed that responds cleanly to control, without overshoot or trailing, makes fine metering achievable on equipment that would otherwise be too coarse for the task.
The remaining benefits are operational and environmental, and they reinforce one another. An ultrasonic vibrator is compact and simple to install, integrates readily into systems that are already in place, and demands little maintenance thanks to the absence of wearing mechanical components, which in turn extends its service life and lowers its running cost. Because it works at low energy and generates very little noise, it also improves the working environment and reduces the plant’s energy footprint. Quiet, efficient and durable, it removes a source of constant nuisance on the factory floor while quietly trimming the operating budget. Taken together, these gains explain why the technology tends to spread once it is adopted: a plant that installs a unit on its most troublesome hopper rarely stops there, because the same logic of reliable flow, lower waste and minimal upkeep applies equally to the next bottleneck along the line. The initial investment is modest relative to the cost of the stoppages, scrap and labour it displaces, and the savings recur for as long as the unit remains in service.
Choosing the right ultrasonic vibrator: frequency, power and materials
Specifying an ultrasonic vibrator is largely a matter of matching three parameters to the application: frequency, power and the material of the working part. Frequency governs the character of the vibration. A lower frequency, in the region of 20 kHz, delivers a more energetic excitation suited to demanding tasks and heavier throughput, while a higher frequency, around 35 kHz, offers a finer, gentler action appropriate to more delicate or precise duties. The choice is rarely arbitrary: it follows from the nature of the powder, the geometry of the surface being excited and whether the priority is raw unclogging force or controlled, fine-grained flow. A useful way to think about it is that lower frequencies trade finesse for power, while higher frequencies trade power for finesse; neither is inherently superior, and the right answer depends entirely on the task. A coarse, free-flowing granulate that occasionally bridges at a hopper outlet calls for a different specification than a fine, cohesive pharmaceutical powder that must be metered to a tight tolerance.
|
Frequency |
Indicative power |
|
20 kHz (energetic, demanding duties) |
Up to around 350 W |
|
35 kHz (finer, more delicate action) |
Up to around 100 W |
Power must then be sized to the duty. A higher-power unit drives a larger or more strongly adhering mass of powder and sustains performance under continuous, heavy use, whereas a lower-power configuration is ample for lighter sieving or dosing and avoids over-exciting a sensitive material. As with any process equipment, both under- and over-specification carry a cost: too little power leaves blockages unresolved and flow inconsistent, while too much is simply wasted energy and may be unnecessarily aggressive. The aim is to provide the excitation the application genuinely requires, with a sensible margin rather than a generous excess. It is also worth remembering that power and frequency are not chosen in isolation from each other or from the mounting arrangement. A 20 kHz unit rated for a few hundred watts will behave very differently depending on how and where it is coupled to the surface it drives, so the practical performance of any configuration is best confirmed against the real powder and the real geometry rather than assumed from the headline figures alone.
The material of the vibrating element is the third lever, and it is dictated chiefly by the operating environment and any regulatory constraints. Titanium, stainless steel and aluminium each bring a different balance of strength, corrosion resistance, weight and hygiene. Stainless steel is the natural choice where cleanability and chemical resistance matter, as in food and pharmaceutical lines; titanium offers an exceptional strength-to-weight ratio and durability for the most demanding service; aluminium is lighter and well suited to applications where mass and cost are the priority. Selecting the right material ensures the unit withstands its environment and, where relevant, satisfies the contact and hygiene requirements of regulated production. Because these three parameters interact, the most dependable route to a good specification is to start from the application — the powder, the duty, the environment and the regulatory context — and let those requirements determine the frequency, power and material in turn, rather than working backwards from a catalogue. A short trial on representative material is the surest way to confirm that the chosen combination performs as intended before committing to a full installation.
Where the ultrasonic vibrator earns its place: applications across industry
The reach of the ultrasonic vibrator is widest in sectors where powder behaviour is both critical and unforgiving. In the agri-food industry, it keeps ingredients flowing freely through sieves and hoppers, prevents the bridging that interrupts continuous production and supports the accurate dosing on which recipe consistency depends. In pharmaceutical manufacturing, where active ingredients are costly and dosing tolerances are tight, the same technology delivers the precision and the low retention that quality and compliance demand. In the nuclear sector and other tightly controlled environments, the ability to handle fine powders reliably, with minimal residue and without bulky mechanical agitation, is especially valuable. Across all three, the common thread is the need for clean, repeatable powder handling that conventional methods struggle to guarantee. These industries also share a low tolerance for contamination and downtime, which sharpens the appeal of a method that reduces residue and runs without manual intervention. A solution that began as a way to keep a sieve clear often proves, on closer inspection, to address several of a plant’s recurring frustrations at once.
Two duties recur again and again in these settings: sieving and unclogging. In sieving, the ultrasonic excitation applied to the screen keeps the mesh clear and the particles moving, so that material passes through at its intended rate instead of blinding the screen and forcing a shutdown to clean it. In unclogging, the vibration is directed at the points where powder tends to accumulate and bridge, such as the outlet of a hopper or the walls of a chute, restoring flow without manual intervention. Because the device works continuously and automatically, it converts what used to be a recurring stoppage into a non-event, and the line keeps running where it would previously have halted. The value of this is easy to underestimate on paper but obvious on the floor: a single recurring blockage that takes ten minutes to clear several times a shift quietly consumes hours of capacity every week, alongside the labour to attend to it and the variability it introduces into output. Removing that interruption altogether does not just save the lost minutes; it restores the steady, uninterrupted rhythm on which efficient production depends.
What ties these applications together is a shift from reactive to designed-in reliability. Rather than tolerating blockages and clearing them as they arise, a plant that integrates ultrasonic vibration builds consistent flow into the process itself, with measurable gains in efficiency, yield and product quality. The compactness of the equipment means this can usually be achieved without re-engineering the line, and its low maintenance and long service life mean the benefit persists rather than degrading over time. For powder-handling operations weighing how to raise throughput and cut waste at once, the technology offers a rare combination: a small, quiet, durable addition that addresses several chronic problems simultaneously, and continues to do so for years after installation. For engineers and plant managers, the practical takeaway is straightforward: identify the points on the line where powder reliably misbehaves, match an appropriately specified unit to each, and expect the improvement in flow, dosing accuracy and cleanliness to hold steady rather than fade. Few process upgrades combine so little disruption at the point of installation with so durable a return, which is precisely why ultrasonic vibration has moved from a niche solution to a standard tool in modern powder handling.
